Horizontal grinder & mixer animal feed machineries are produced two types as KT 500K and KT 1000K. The machine is composed of two parts as grinder unit and mixer unit.

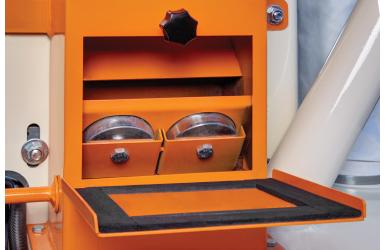

Grinder unit is surrounded as 360° by screen. Feeding is made from the inside of screen ( the breaking system has a vertical shaft). This grinding system has the latest technology, it works silence without dust and the animal feed are grinded homogeneously. The animal feed size can be arranged by changing the sieves.

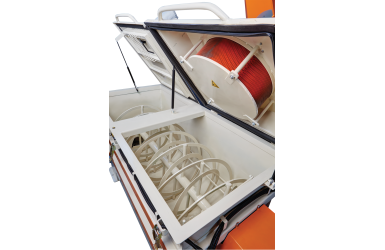

Grinded feeds fall in to mixer. Requested additives such as medicine and minerals etc. are directly aded to the mixer unit. The mixer is made of two screws within each other, one of is right pitch, other is left pitch. This kind of mixers are very fast and made homogen mixture in very short time. Finally the feed is obtained.
| KT 1000K | KT 500K | |
| Grinding & Mixing Capacity | 1.750 - 2.000 kg/h | 750 - 1.000 kg/h |
| Grinding Capacity | 1.600 - 5.500 kg/h | 1.030 - 2.750 kg/h |
| Mixing Capacity | 1.800 lt. | 800 lt. |
|
Mixing Time
|
5 min. | 3.5 min |
|
Sack Fill Time
|
20 sec. | 22 sec. |
|
Grinding Motor Power
|
25 hp, 380v | 15 hp, 380v |
| Mixing Motor Power | 10 hp, 380v | 7.5 hp, 380v |
| Sack Fill Motor Power | 3 hp, 380v | 1.5 hp, 380v |
| Dimensions (W x L x H) | 337 x 150 x 248 cm | 137 x 277 x 205 cm |
| Weight | 1.545 kg | 920 kg |
| Number of Blades | 54 pieces | 36 pieces |
